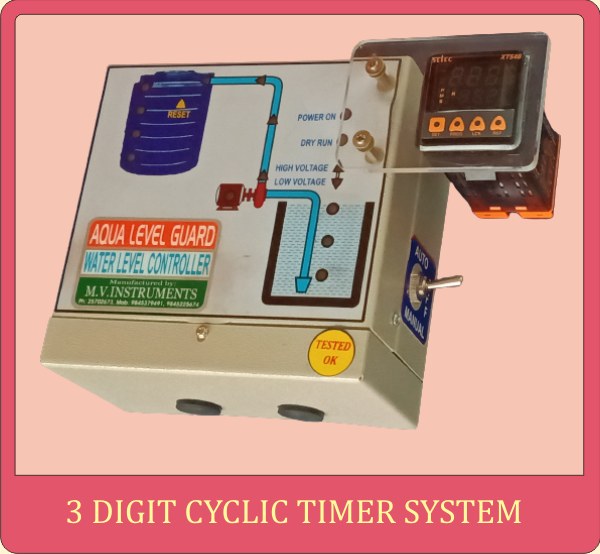

The Cyclic Timer Model:
This model is a cyclic timer incorporated to the Water level controller which is suitable for Borewells with limited
water source. This model comes with One Year Guarantee.
The Technical Specifications:
| Description | Single Phase | Three Phase | |
| Operating Voltage. | 230V 50 Hz AC. | 440V 50 Hz AC. | |
| System Operating Voltage. | 12V DC. | ||
| Sensing Voltage. | 1.5V, 100 Hz AC signal. | ||
| Sensing Current. | 20 micro Amp. | ||
| ON Duration Range. | 1 to 999 Minutes. | ||
| OFF Duration Range. | 1 to 999 Minutes. | ||
| Operating Switch Rating. | 20A. | 6A. | |
| Low Voltage cut-off at. | 170V. | 340V. | |
| Auto Reset at. | 180V. | 370V. | |
| Power Consumption | 0.05 Unit Per day. | ||
| Visual Indications. |
|
||
| Dimensions ( L X B X H ) | 8 inch X 9.5 inch X 4.5 inch. | GO BACK | |
