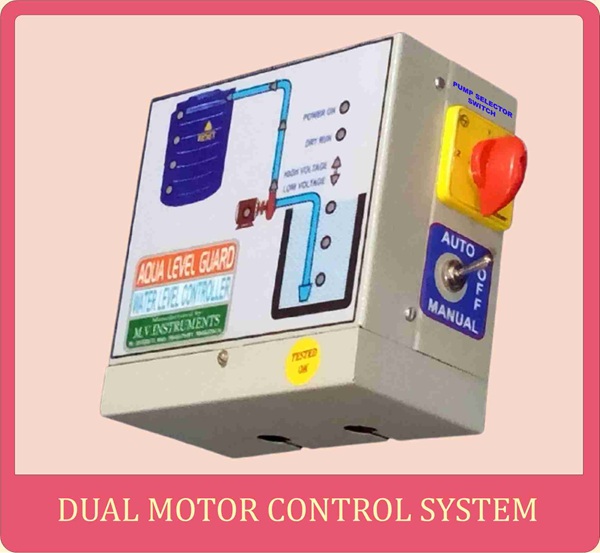

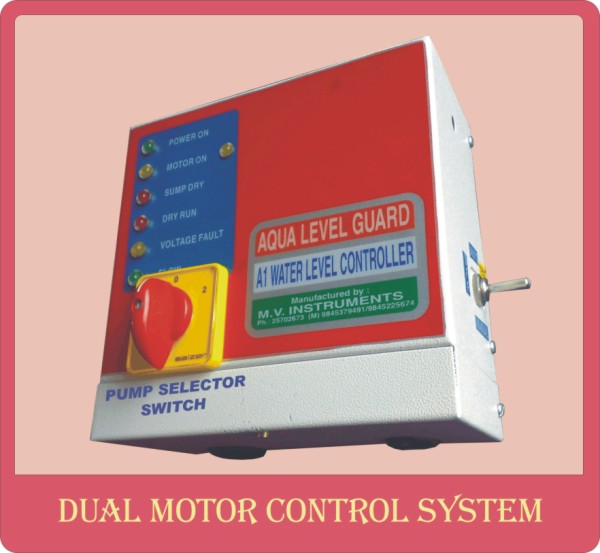

The Dualmotor Model:
This model is a Water Level Controller which is a completely Automatic System with Built-in
advanced 'Pumpset Protection Circuitry' and Pump Selector Switch. This system can be adopted where
there are two pumps installed for a common task as Main Pump and Stand-by Pump. This model comes with Five Year Guarantee.
The Technical Specifications:
| Description | Single Phase | Three Phase | |
| Operating Voltage. | 230V 50 Hz AC. | 440V 50 Hz AC. | |
| System Operating Voltage. | 12V DC. | ||
| Sensing Voltage. | 1.5V, 100 Hz AC signal. | ||
| Sensing Current. | 20 micro Amp. | ||
| Power Contactor Rating. | 30A Load Current. | 10A for Coil Control. | |
| Operating Switch Rating. | 20A. | 6A. | |
| Low Voltage cut-off at. | 170V. | 340V. | |
| Auto Reset at. | 180V. | 370V. | |
| Surge Voltage delay. | 15 Sec. | ||
| Pump Selector Switch Rating. | 10A Two Pole. | 6A Four Pole. | |
| Power Consumption | 0.05 Unit Per day. | ||
| Visual Indications. |
|
||
| Enclosure. | Power Coated MS Sheet Metal. | ||
| Dimensions ( L X B X H ) | 8 inch X 7 inch X 4.5 inch. | GO BACK | |
