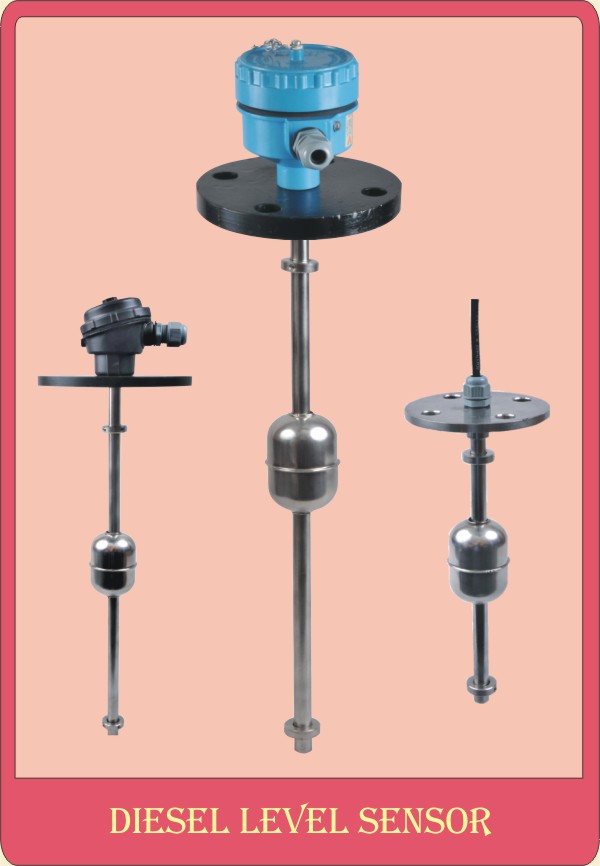

The Diesel Level Sensor:

The magnetic level switch consists of non-abrasive Float carrying permanent ring magnet and non-ferrous stem carrying one or more magnetic reed switches at desired levels. This sensor comes with One Year Guarantee.

 GO BACK


The Technical Specifications:
Mechanical Specification. Description.
Sensor Stem Non Magnetic, Non Corrosive SS304
Sensor Float SS316 Float with 52mm Dia.
Mounting Arrangement
  • Standard Table Flanges. (ANSI, BS, DIN).
  • 1.5" or 2" BSPM Threaded
  • Material: SS304.
Electrical Description Specification.
Electrical Termination. Flame proof cast aluminium enclosures
(Suitable for Group IIA and IIB zones).
Electrical Switching Voltage Upto 24V DC;
Electrical Switching Current Upto 1 Amps.
Maximum Length 3000mm.
SS Fabrication Process. TIG Welding.
Accuracy ± 2mm.  GO BACK
