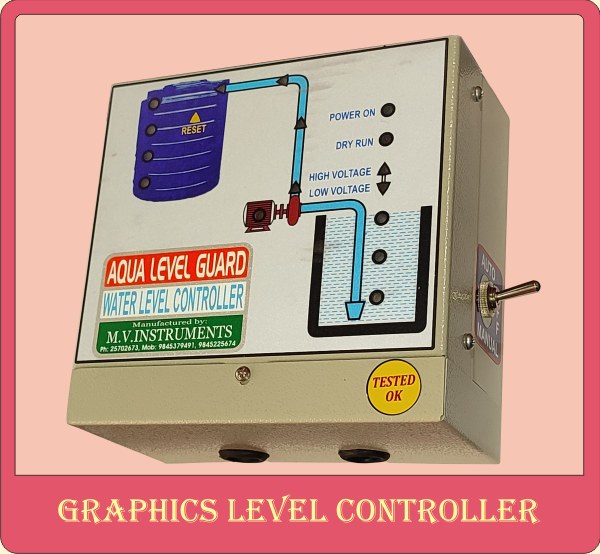

The Graphics Model:

This model is a Water Level Controller which is a completely Automatic System with Built-in advanced 'Pumpset Protection Circuitry' and Graphical display of water levels in Overhead Tank and Underground Sump. This model comes with Two Year Guarantee.

 GO BACK


The Technical Specifications:
Description Single Phase Three Phase
Operating Voltage. 230V 50 Hz AC. 440V 50 Hz AC.
System Operating Voltage. 12V DC.
Sensing Voltage. AC Sensing signal.
Sensing Current. 40 micro Amp.
Power Contactor Rating. 30A Load Current. 10A for Coil Control.
Operating Switch Rating. 20A. 6A.
Low Voltage cut-off at. 170V. 340V.
Auto Reset at. 180V. 370V.
High Voltage cut-off at. 260V. 460V.
Auto Reset at. 250V. 440V.
Surge Voltage delay. 15 Sec.
Power Consumption 0.08 Unit Per day.
Visual Indications.
  • Power ON.
  • Motor ON.
  • Three Sump Level Indications.
  • Four Tank Level Indications.
  • Dry Run.
  • Low Voltage and High Voltage.
  • Animated Flow Indications.
Enclosure. Power Coated MS Sheet Metal.
Dimensions ( L X B X H ) 8 inch X 7 inch X 3.5 inch.  GO BACK
