The 10 Level Digital Indicator Model:
This is a Water level indicator system which indicates digitally 10 different levels of water in any tank:

• The system automatically indicates water level in underground sump / overhead tank.
• The different level indications are 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90% and 100%.
• The system has Three Digit Seven Segment LED Display to indicate the water level.
• The system can also provides Flow indication of water into the tank if required.
• When water level reaches 100% an audible Buzzer indication can also be provided.
• The system comes with industrial grade electronic components and powder coated metallic enclosure.
• This system is based on Pulse sensing technology, hence sensors need to be maintained periodically depending upon the hardness of water.
• This system is suitable for Commercial complexes, Residential Apartments and Industries.
• The system is suitable for various types of sensing arrangements, Namely,

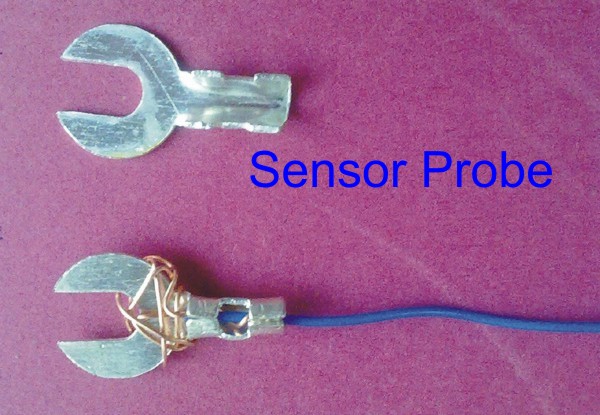

  • Tin Coated Copper Sensors,

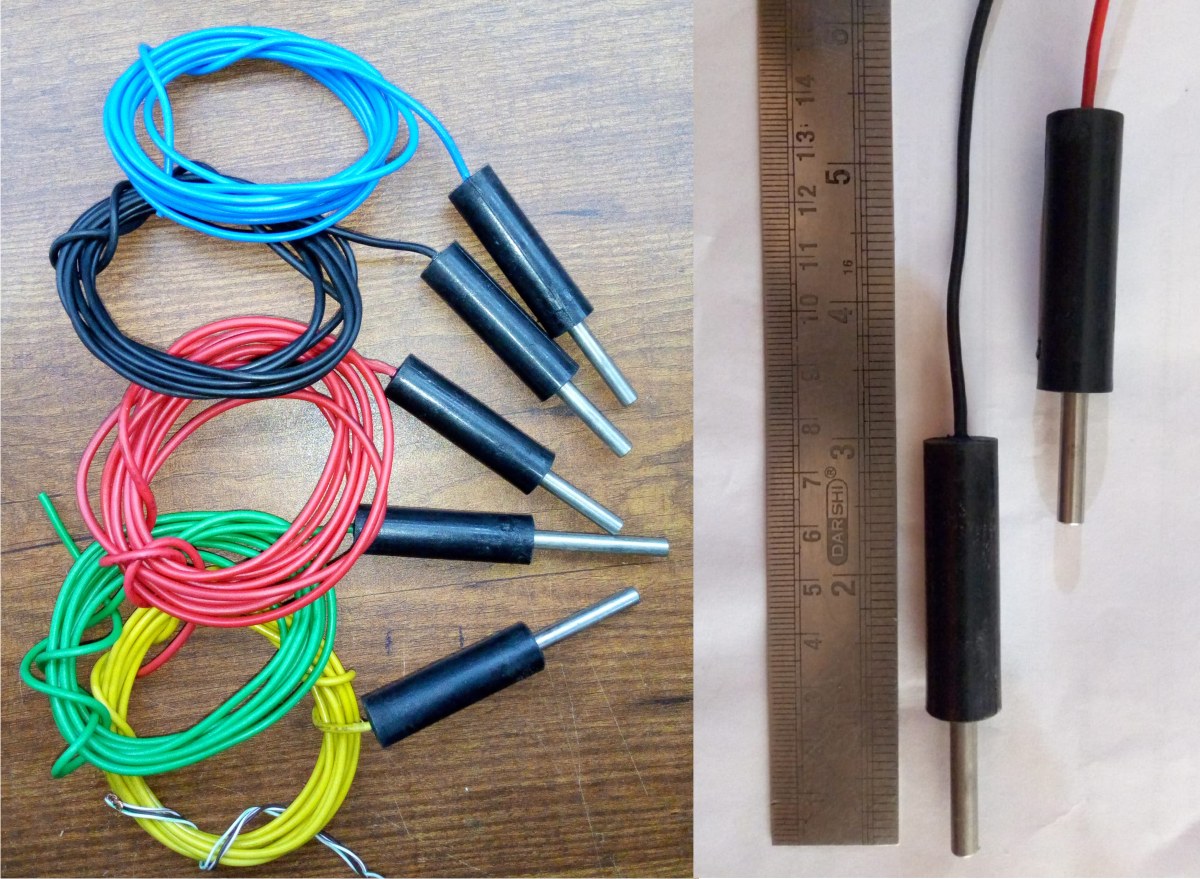

  • Plastic Molded Stainless Steel Sensors,

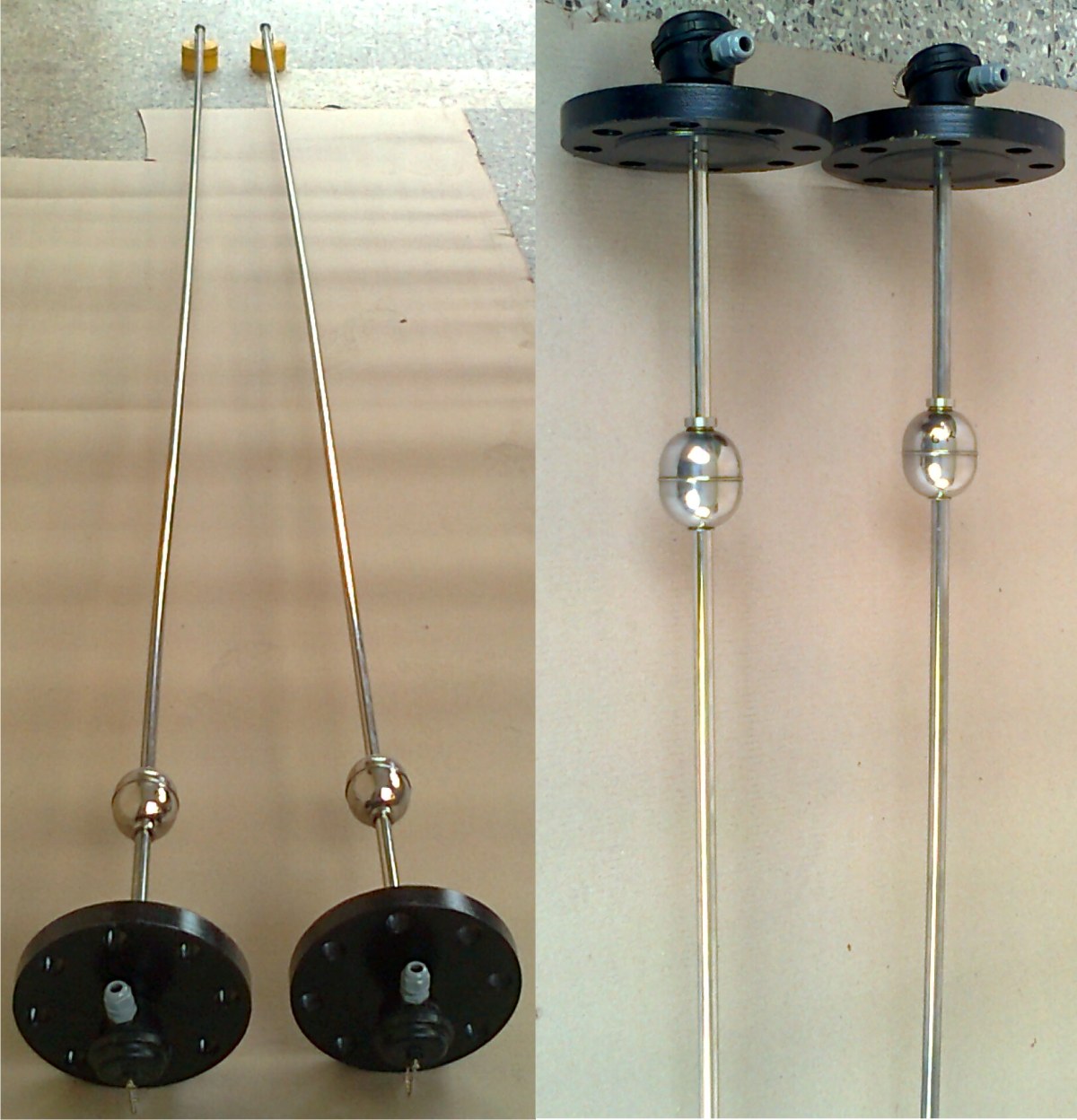

  • Stainless Steel Latch Type Float Sensors,

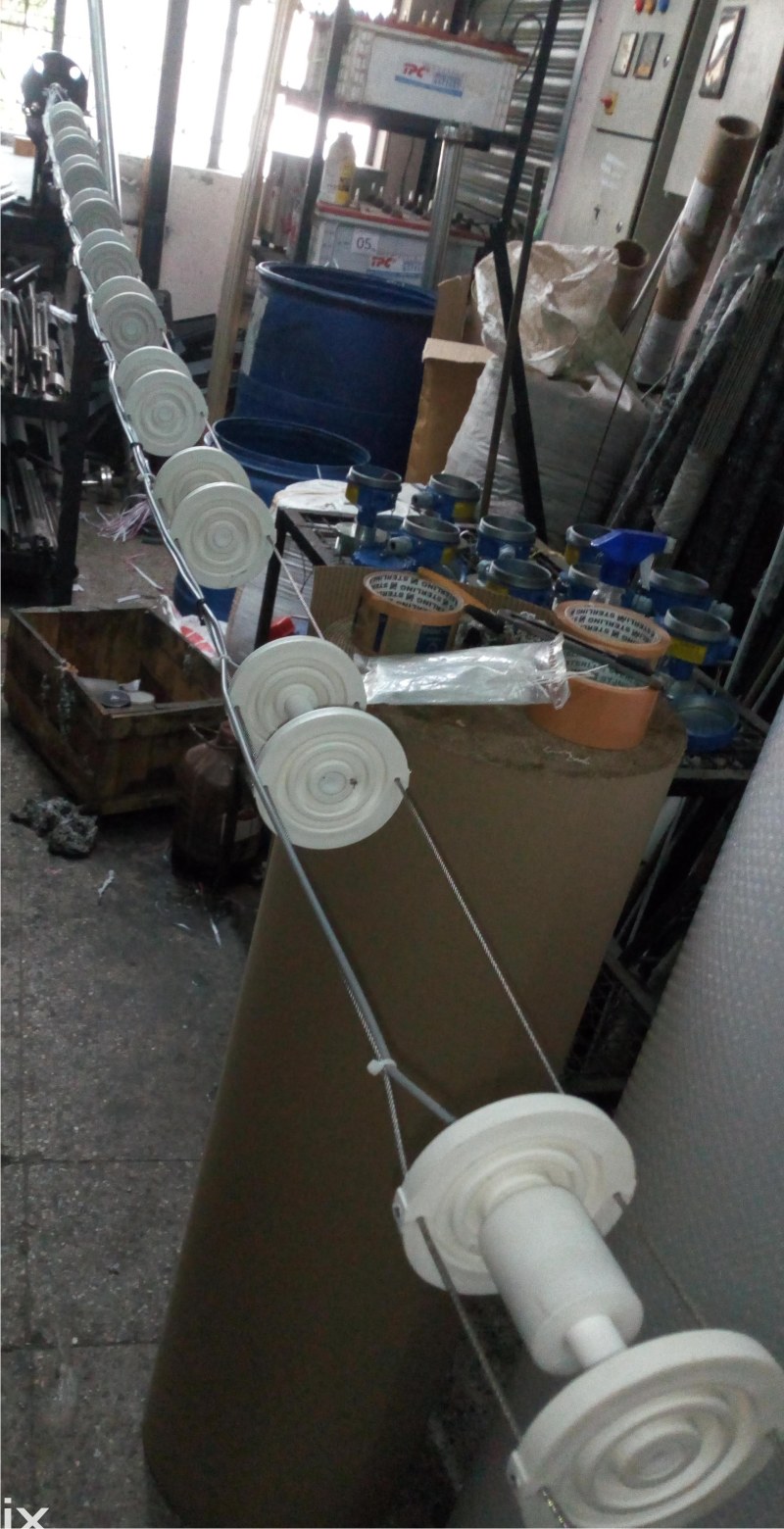

  • SS Rope Type Adjustable Float Sensors.
• Depending upon the types of the Tanks to which the water level indication is required, the sensor type can be chosen. SS Latch type Float sensor suitable for diesel tanks and other chemicals. Adjustable type Level sensors are suitable for tanks which are above 3 Met height of coloum of water, as transportation and installation may be impractical to handle. Download e-catalogue in pdf format.
• The systems comes with ONE Year Guarantee against manufacturing defects.
